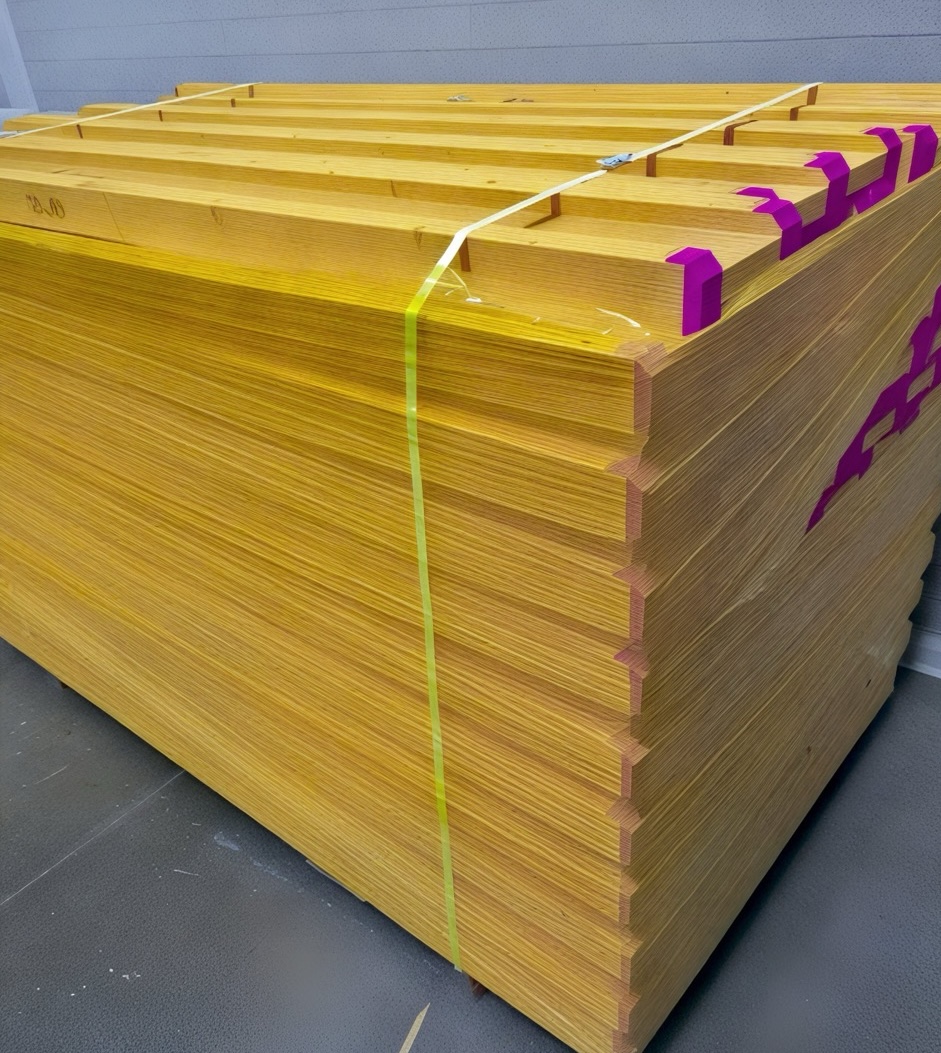

Formwork Beams (H20)

H20 beams are made from softwood with a layered construction and plastic-protected ends, renowned on jobsites worldwide for their efficiency and reliability. These beams are designed for use in formwork and shoring systems.

Key Properties:

• Robust three-layer glued construction

• Plastic-protected ends for safety and durability

• Synthetic resin–treated surface for moisture resistance

• High mechanical strength with optimized weight for easy handling

Recommended for:

• Floor and wall formwork, temporary support systems in civil and industrial construction

Technical Specifications:

• Beam width (with flanges): 200 mm

• Flange dimensions: 80 × 40 mm

• Available lengths: 1 500 – 5 500 mm

• Laminated panel thickness: 26.8 mm

• Weight: approx. 5 kg/m

• Packaging: 100 pcs/pallet

Technical Values:

• Load capacity: 5 kNm

• Transverse strength: 11 kN

All products comply with EU quality and safety standards for construction
